Product
Features:
1.Unique pressure roller design, cutting the picture at any time.
2.Convenient Operation.
3.A stable synchronization weight balance system, avoiding the fabric folds.
4.Advanced thermal color technology to assure the uniformity of temperature
5.Positive inversion feeding system, saving waste cloth.
6.Optional automatic take up roller system.7.Maximum printing width is 1.6m |

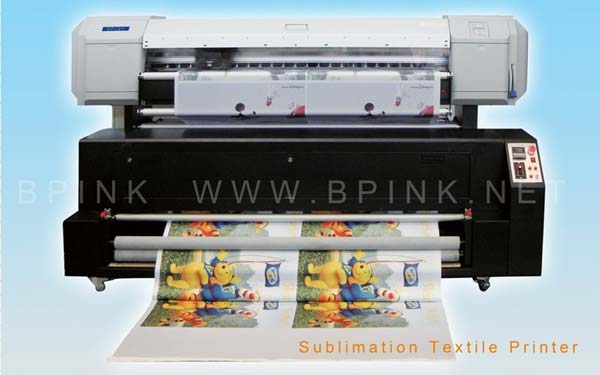

 BPJET-TS1600 Textile Sublimation Printer |
| Sublimation Printer |
Machine Specification |
| Model |
BPJET-TS1600 |
| Printing Method |
PIEZO Inkjet |
| Max Print Width |
1625mm |
| Printhead Technology |
The 5th Generation of Micro Piezo Technology |
| Ink colors |
4 colors: Cyan, Magenta, Yellow, Black |
| Printhead Height |
1.5mm\2.5mm Low/High |
| Print Resolution |
1440dpi (Max) |
| Printing Speed |
Resolution |
Speed |
| 540×720dpi/3pass |
21m2/h |
| 540×720dpi/6pass |
10.5m2/h |
| 720×720dpi/4pass |
15.5m2/h |
| 720×720dpi/8pass |
7.7m2/h |
| 1440×720dpi/(8pass) |
5.9m2/h |
| 1440×1440dip/(16pass) |
3.0m2/h |
| Material size |
Max media thickness: 1.0mm(0.039in.) |
| Material Diameter |
2 inch / 3 inch |
| Maximum weight for roll media |
40kg |
| Ink type |
CMYK: dye sublimation ink |
| Ink Supply Mode |
Continuous Ink Supply |
| Interface |
Ethernet 10 Base-T |
| Printing accuracy |
±0.3% or 0.3mm |
| Head Cleaning |
Automatic and/or Manual |
| Media Type |
Polyester |
| Working Environment |
Temperature: 16-24 ? Humidity: 40%-65% RH |
| Power |
Direct Dye Sublimation Heater: AC 220V 1p hase+N+ PE,16A,50/60Hz
Printer: AC 220-240V, 50/60 Hz |
| Printer Dimension(WxDxH) |
2698 x 1200 x 1435mm |
| Weight |
458kg |
